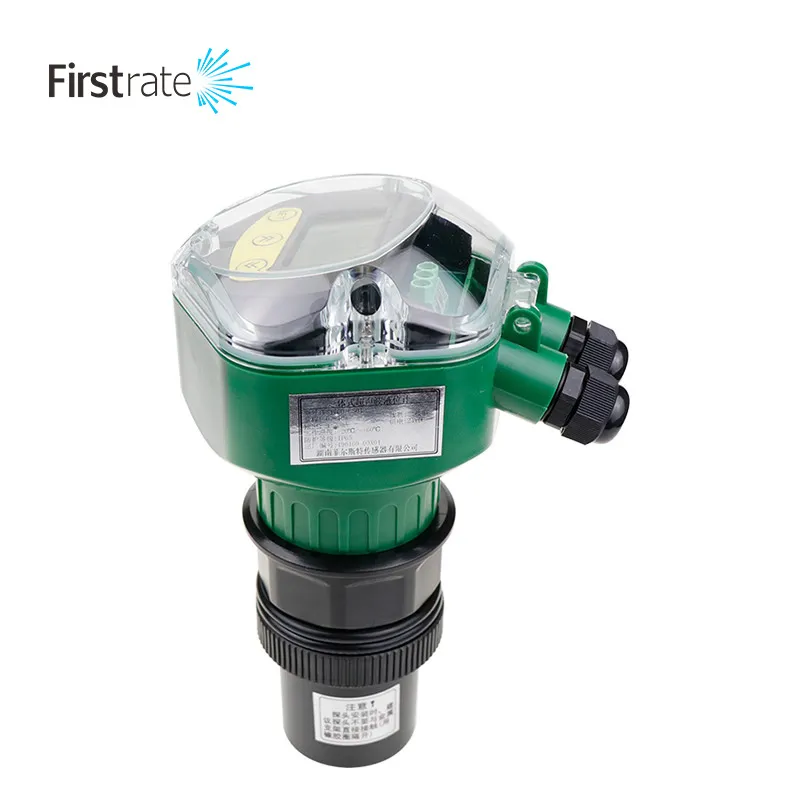

Firstrate FST700-CS01 Ultrasonic Water Tank Level Sensor

FST700-CS01 is a compact ultrasonic liquid level sensor developed by Firstrate, specially designed for water tank and small pool level measurement. It adopts non-contact ultrasonic ranging technology, built-in digital temperature compensation module to eliminate temperature measurement error. Equipped with multiple standard signal outputs, compact housing for easy top-mounted installation, with stable performance and strong anti-interference ability. Widely applied in domestic water tanks, environmental sewage tanks, cooling water pools and small industrial liquid storage containers.

Specifications

ApplicationWater storage tank, sewage tank, cooling pool, small industrial liquid tank
InstallationTop thread mounting
OutputSignal4~20mA
Core Advantage Small size, low cost, dedicated for water tank
MeasuringRange0~5m
Supply VoltageDC 12V~24V
Housing MaterialABS engineering plastic
Protection GradeIP65
Ambient Temperature-30℃ ~ +70℃
Measurement Accuracy ±1%FS
MeasurementPrincipleUltrasonic
Working Medium Temperature-20℃ ~ +70℃
