KEY-IOT (StarElink) SR800-01 Fiber Port Industrial 5G Router
SR800-01 Fiber Port Industrial 5G Router integrates 5G NR, RedCap, SFP fiber optic and complete VPN technology. Supporting STP ring network, dual SIM backup and wired/fiber/5G/Wi-Fi four-link automatic failover, it adopts full metal IP30 wide-temperature housing with gigabit Ethernet, serial and dual SFP optical ports. It supports Linux secondary development, industrial protocols and StarCloud remote management, ideal for mine monitoring, park backbone, port and long-distance industrial networking.
Specifications
| USB | 1×USB2.0 |
| MTBF | ≥100000 hours |
| Brand | KEY-IOT (StarElink) |
| Model | SR800-01 Fiber Port Industrial 5G Router |
| Wi-Fi | Optional 2.4G/5.8G dual-band, Wi-Fi6 optional |
| Memory | 512MB RAM, 4GB EMMC Flash |
| Antenna | 4×SMA 5G antenna, 2×SMA Wi-Fi antenna optional |
| Housing | Metal Alloy |
| Ethernet | 4×10/100/1000M adaptive LAN/WAN |
| Mounting | DIN Rail |
| SIM Slot | 2 drawer-type SIM/UIM slots |

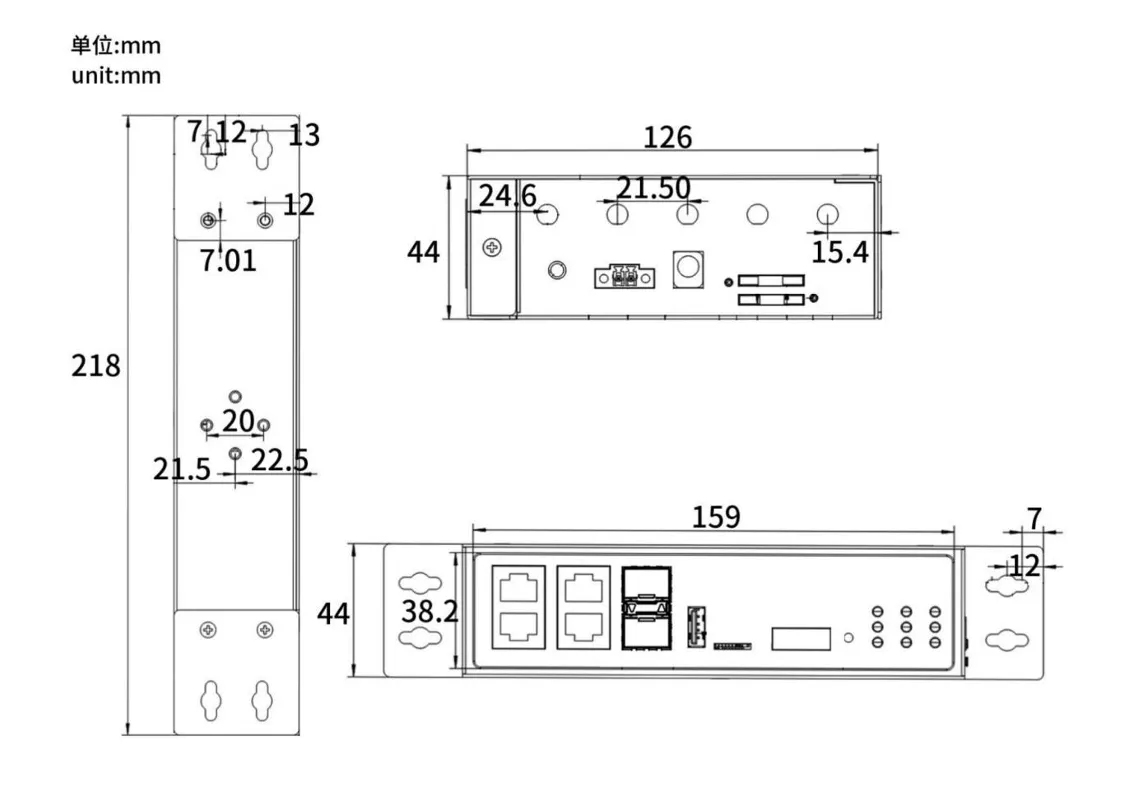

| Dimension | 16612644mm |
| Net Weight | 0.90KG |
| Gross Weight | 1.40KG |
| Optical Port | 2 SFP fiber ports, support STP ring topology |
| VPN Function | OpenVPN |
| Certification | CCC, RoHS |
| Core Features | Fiber+5G multi-network backup, STP ring network, hardware watchdog, FOTA, SNMP, StarCloud remote batch management |
| Dynamic Routing | OSPF, RIP |
| Working Voltage | DC 9~36V dual redundant power |
| Cellular Network | 5G |
| Protection Grade | IP30 |
| Serial Interface | RS485 |
| Operating Humidity | 5%~95% non-condensing |
| Storage Temperature | -40℃ ~ +85℃ |
| Industrial Protocols | MQTT, Modbus |
| Operating Temperature | -35℃ ~ +75℃ |
