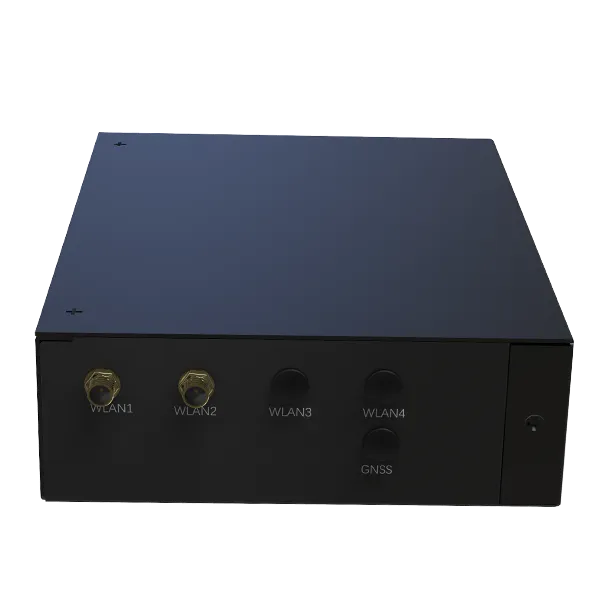

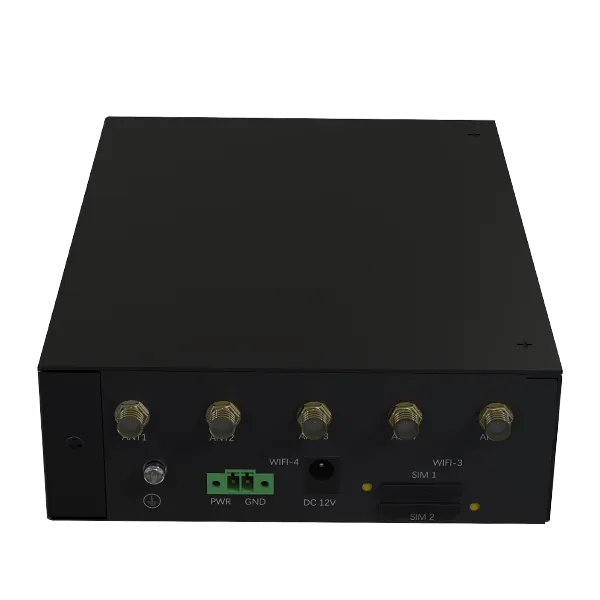

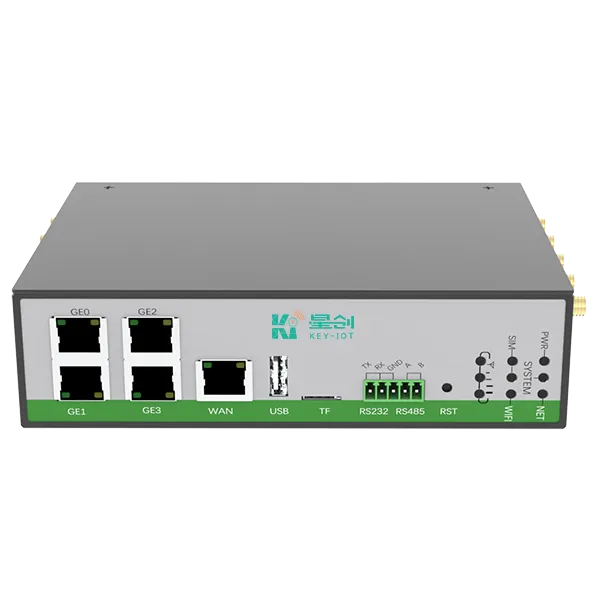

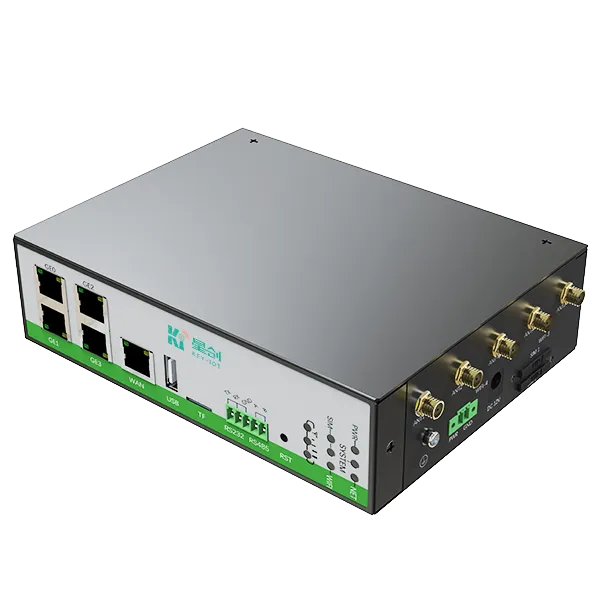

KEY-IOT (StarElink) SR800 Standard Industrial 5G Router
The SR800 Standard Industrial 5G Router developed by KEY-IOT (StarElink) integrates 5G NR, RedCap and full VPN technology. It equips dual SIM backup, wired-5G-Wi-Fi multi-link failover, dual power redundancy and abundant gigabit Ethernet & serial ports. With metal IP30 housing, wide temperature design, built-in industrial protocols and Linux secondary development support, it delivers stable high-speed transmission for industrial automation, smart city, remote monitoring and outdoor IoT M2M scenarios.
Specifications
| USB | 1×USB2.0 |
| MTBF | ≥100000 hours |
| Brand | KEY-IOT (StarElink) |
| Model | SR800 Standard Industrial 5G Router |
| Wi-Fi | Optional 2.4G/5.8G dual-band (866.7Mbps), Wi-Fi6 optional (1774Mbps) |
| Memory | 512MB RAM, 4GB EMMC Flash |
| Antenna | 4×SMA 5G antenna, 2×SMA Wi-Fi antenna optional |
| Housing | Metal Alloy |
| Ethernet | 1×10/100/1000M configurable WAN, 4×10/100/1000M LAN |
| Mounting | DIN Rail |
| SIM Slot | 2 drawer-type SIM/UIM slots |
| Dimension | 16612644mm |
| Net Weight | 0.87KG |
| Gross Weight | 1.40KG |
| VPN Function | PPTP, L2TP, IPsec, OpenVPN, GRE, GRETAP, VXLAN |

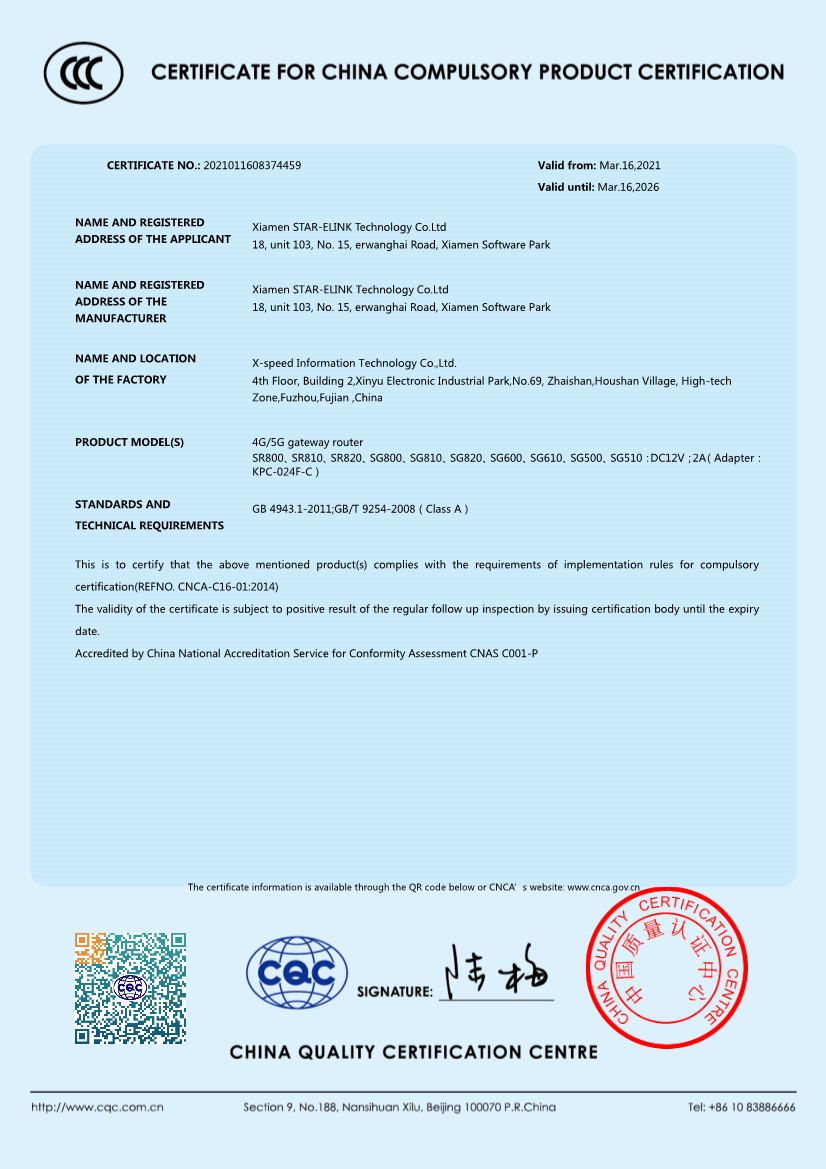

| Certification | CCC, RoHS, CE |
| Core Features | Dual SIM backup, multi-link failover, hardware watchdog, FOTA remote upgrade, SNMP v1/v2/v3, StarCloud platform batch management |
| Dynamic Routing | OSPF, RIP |
| Working Voltage | DC 9~36V wide dual power input |
| Cellular Network | 5G |
| Protection Grade | IP30 |
| Serial Interface | 1×RS232,1×RS485 |
| Operating Humidity | 5%~95% non-condensing |
| Storage Temperature | -40℃ ~ +85℃ |
| Industrial Protocols | MQTT, Modbus RTU/TCP |
| Operating Temperature | -35℃ ~ +75℃ |
