KEY-IOT (StarElink) SR830-E Embedded 5G Router Module

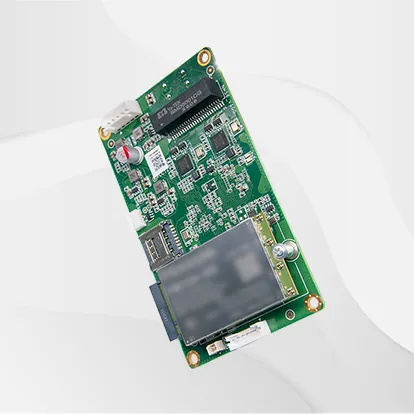

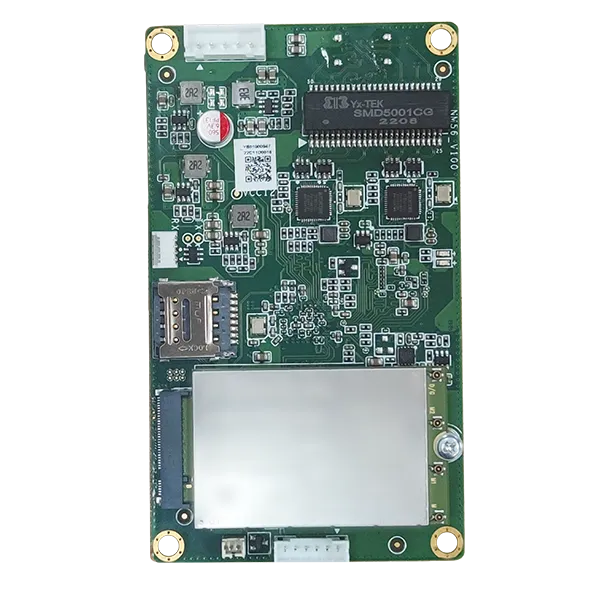

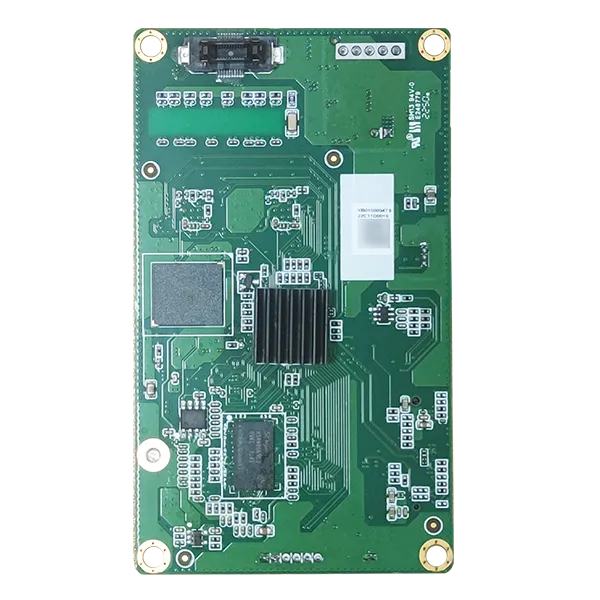

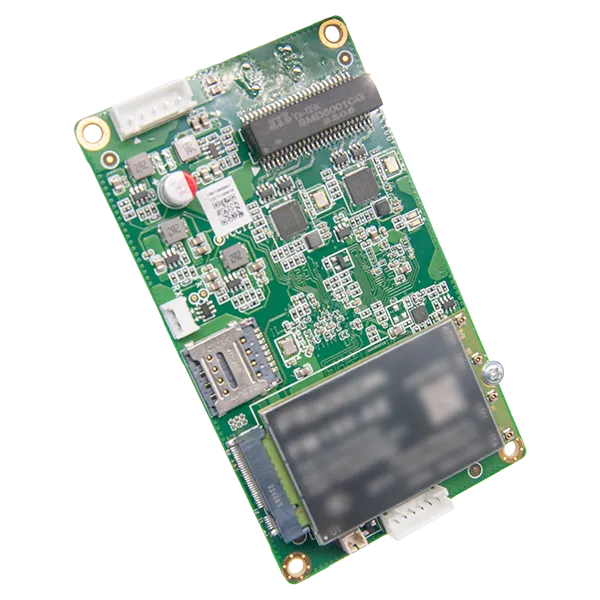

SR830-E is embedded PCB 5G router module developed by KEY-IOT (StarElink), integrating industrial 5G NR/RedCap, multi-DNN network slicing and full VPN protocols. It provides dual gigabit Ethernet via 20PIN connector, supports VXLAN Layer 2 networking and Linux secondary development. Compact PCB structure, wide temperature resistance and complete hardware protection, designed for medical equipment, industrial controllers, embedded devices and data center edge networking.
Specifications
| MTBF | ≥100000 hours |
| Brand | KEY-IOT (StarElink) |
| Model | SR830-E Embedded 5G Router Module |
| Memory | 512MB RAM, 4GB EMMC Flash |
| Ethernet | 2×10/100/1000M adaptive port via 20PIN PCB connector |
| Mounting | PCB screw column fixed installation |
| SIM Slot | 1 flip-type SIM card slot |

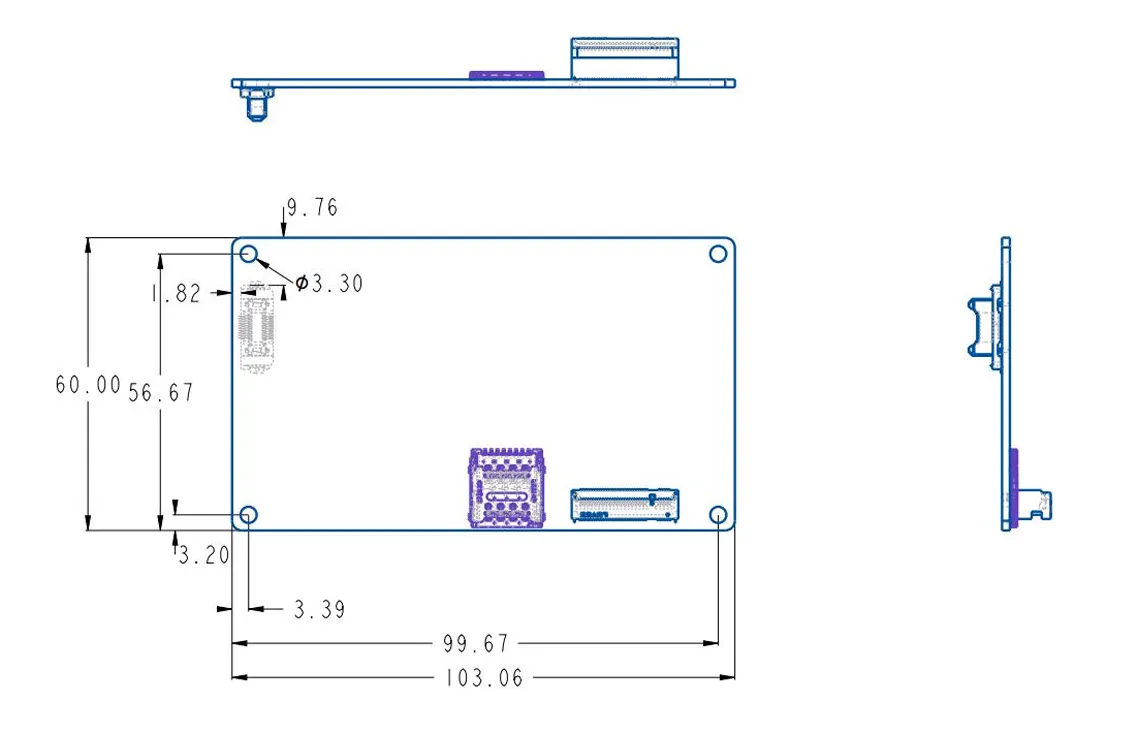

| Dimension | 1036025mm |
| Structure | PCB embedded module |
| Power Input | DC 12V, ≥1.5A current demand |
| VPN Function | PPTP, L2TP, IPsec, OpenVPN, GRE, GRETAP, VXLAN |
| Certification | CCC, RoHS |
| Core Features | Multi-DNN network slicing, VXLAN Layer2 networking, wired-5G link failover, hardware watchdog, FOTA remote upgrade, SNMP, StarCloud remote management |
| Standby Power | 300~500mA@12V DC |
| Dynamic Routing | OSPF, RIP |
| Operating Power | 500~700mA@12V DC |
| Cellular Network | 5G |
| Serial Interface | RS485 |
| Operating Humidity | 5%~95% non-condensing |
| Storage Temperature | -40℃ ~ +85℃ |
| Industrial Protocols | MQTT, Modbus |
| Operating Temperature | -35℃ ~ +75℃ (extra heat dissipation required) |
