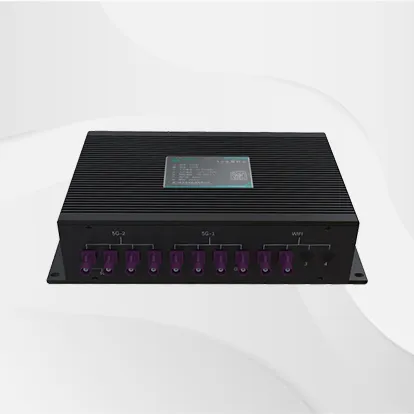

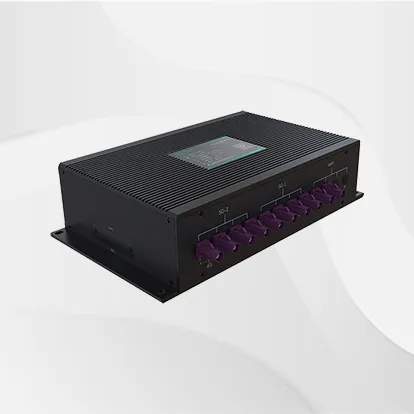

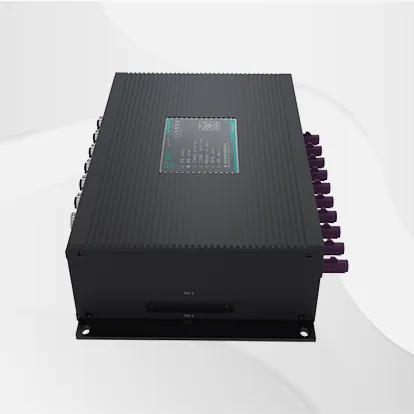

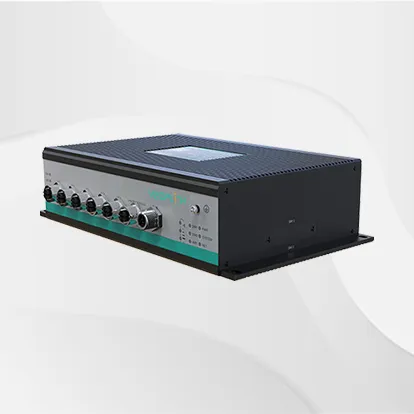

KEY-IOT (StarElink) SV900 Vehicle-Grade 5G Industrial On-Board Gateway
The SV900 Vehicle-Grade 5G Industrial On-Board Gateway developed by KEY-IOT (StarElink) is a vehicle-mounted communication terminal built for mobile industrial equipment. It supports optional dual 5G or 5G+4G cellular modules and RedCap technology, equipped with full M12 aviation interfaces, CAN bus, multi-link backup and link auto-failover. Adopting aluminum alloy wide-temperature housing with IP40 protection, it supports comprehensive VPN protocols, multi-DNN network slicing and Linux secondary development. Widely used in unmanned vehicles, mining equipment, sanitation fleets and mobile monitoring command scenarios.
Specifications
| Brand | KEY-IOT (StarElink) |
| Model | SV900 Vehicle-Grade 5G Industrial On-Board Gateway |
| Wi-Fi | Optional 2.4G/5.8G dual-band, Wi-Fi6 optional |
| Memory | 512MB DDR4 RAM, 4GB EMMC Flash (expandable) |
| Housing | Aluminum Alloy |
| Ethernet | 5×10/100/1000M M12 aviation ports, configurable WAN/LAN |
| Mounting | DIN Rail |
| SIM Slot | 2 SIM/UIM slots, support ESIM |

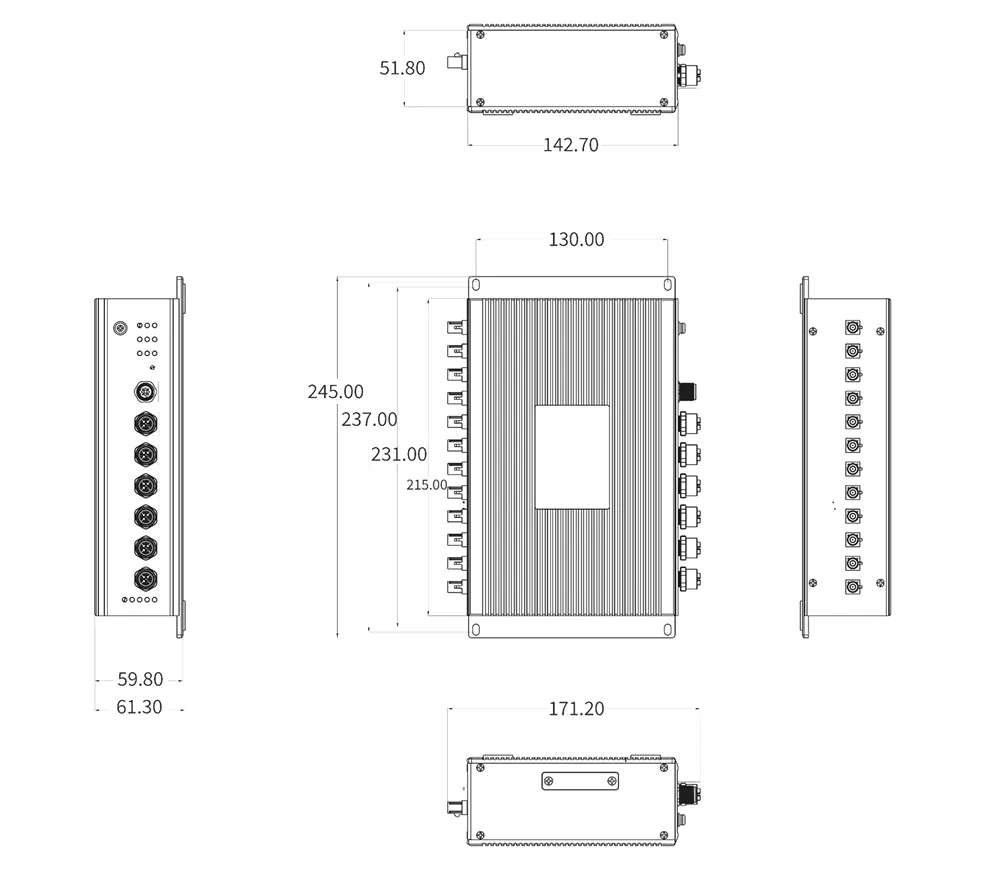

| Dimension | 24517161mm |
| Application | Unmanned vehicles, mining trucks, sanitation fleets, mobile monitoring systems |
| VPN Function | OpenVPN |
| Working Voltage | DC 9~48V wide vehicle power |
| Cellular Network | 5G |
| Protection Grade | IP40 |
| Serial Interface | RS485 |
| Operating Temperature | -35℃ ~ +75℃ |
| M12 Aviation Connector | Power, Ethernet, Serial port |
| Serial & Vehicle Interfaces | 1×RS232,1×RS485,1×CAN Bus |
