Ethernet Switches

KEY-IOT (StarElink) SV910-N Automotive Ethernet Switch

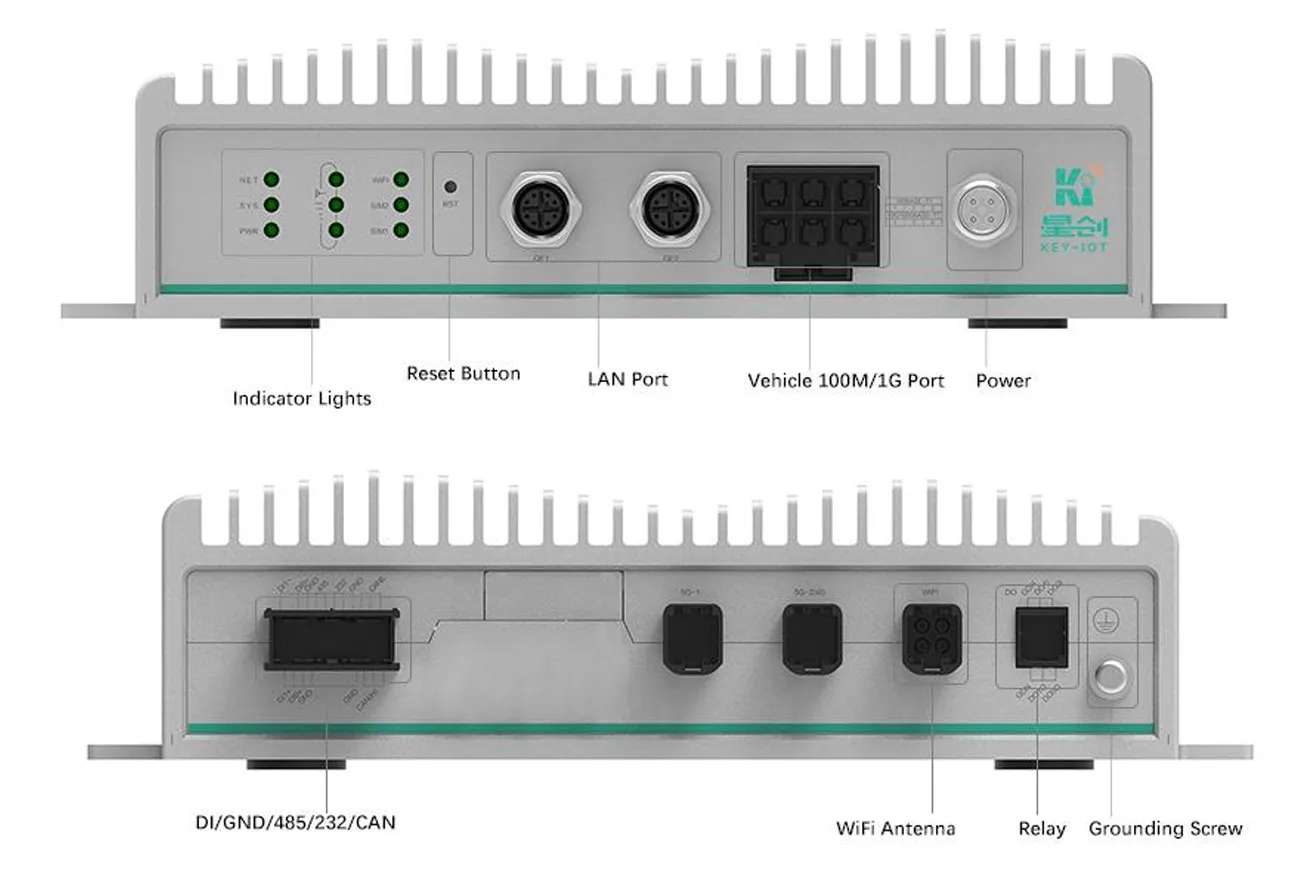

SV910-N is vehicle-grade automotive Ethernet switch developed for autonomous vehicles, equipped with multiple T1 automotive Ethernet ports, CAN bus, DI/DO signal interfaces and M12 aviation connectors. Supports PTP precise time synchronization, VLAN, static/dynamic routing, aluminum IP40 wide-temperature housing, widely used for unmanned mining trucks, robotaxis and autonomous shuttles.

Specifications

MTBF≥100000h
SyncPTP/GPTP precise timing
BrandKEY-IOT (StarElink)
ModelSV910-N Automotive Ethernet Switch
Speed100M
Serial1×RS232,1×RS485
CAN Bus2 CAN (expand to 3)
FeatureHardware watchdog,V2X optional
HousingAluminum Alloy
NetworkVLAN,OSPF/RIP,static routing
Humidity5%~95% non-condensing
PortCount2
Signal IO2 opto-isolated DI,2 relay DO
ApplicationRobotaxi,unmanned mining vehicles,autonomous sweepers
PoE SupportNon-PoE
Power InputDC 9~48V wide vehicle power
M12 Ethernet2×10/100/1000M TX
Storage Temp-40℃ ~ +85℃
CertificationCCC,RoHS,CE
Operating Temp-35℃ ~ +75℃
ProtectionGrade IP40
Automotive Ports3×1000/100BASE-T1,3×100BASE-T1
Protection GradeIP40
