KEY-IOT (StarElink) SW08F 8-Port 100M Industrial Ethernet Switch
SW08F unmanaged 8-port 100Mbps industrial switch, 8 auto-negotiation RJ45 ports, dual redundant wide power supply, IP40 metal rail housing, low latency forwarding. Ideal for workshop equipment, intelligent cabinet and environmental monitoring networking.
Specifications
| MTBF | ≥300000h |
| Brand | KEY-IOT (StarElink) |
| Model | SW08F 8-Port 100M Industrial Ethernet Switch |
| Mount | DIN Rail / Wall-mounted |
| Ports | 8×10/100M auto MDI/MDIX RJ45 |
| Power | DC12~52V dual redundant terminal power |
| Speed | 100M |
| Buffer | 1Mbit |
| Housing | Metal Alloy |
| Humidity | 5%~95% non-condensing |
| Protocol | IEEE802.3/3u/3x |

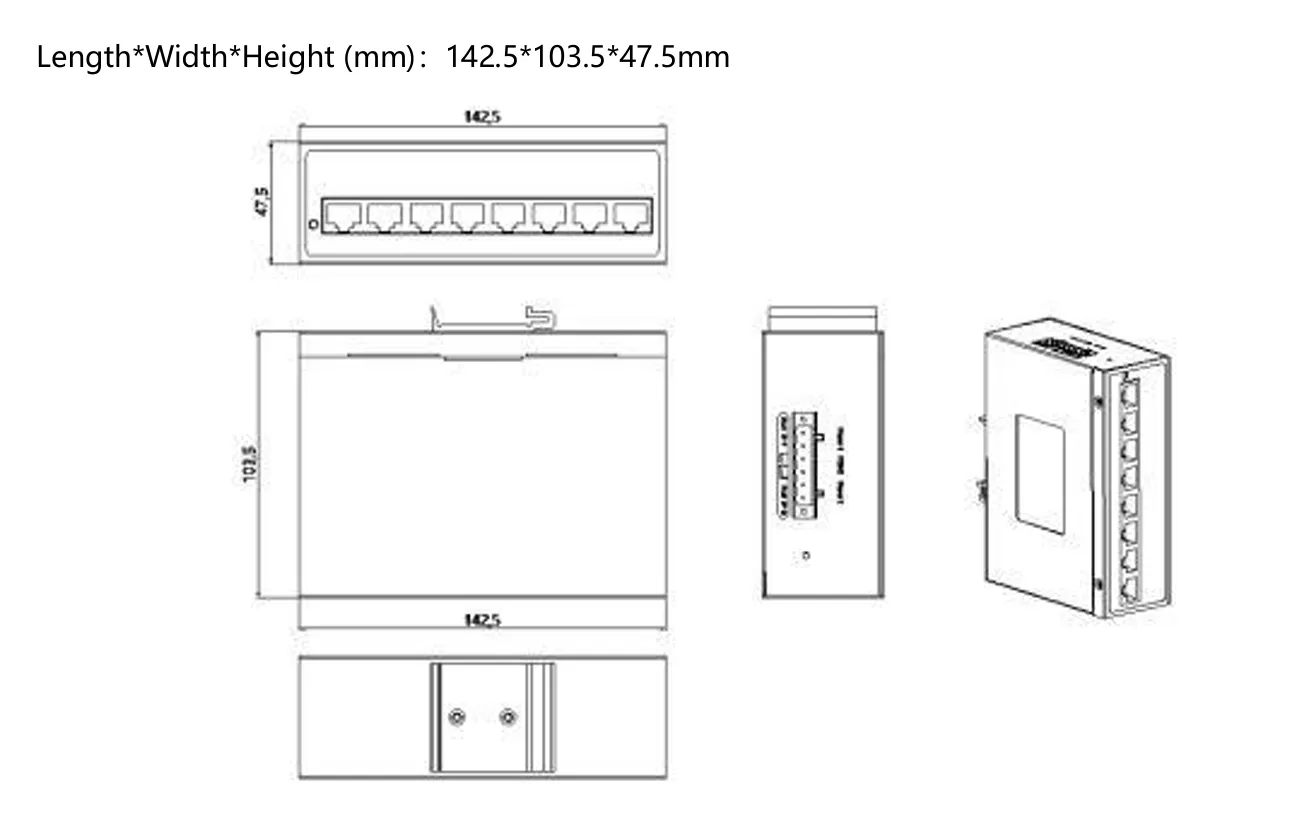

| Dimension | 142.5×103.5×47.5mm |
| MAC Table | 2K |
| PortCount | 8 |
| Application | Workshop equipment,intelligent cabinet,environmental monitoring |
| PoE Support | 802.3bt High PoE |
| Storage Temp | -40℃ ~ +85℃ |
| Certification | FCC,CE,RoHS |
| Operating Temp | -40℃ ~ +75℃ |
| ProtectionGrade | IP40 |
| Protection Grade | IP40 |
| Switch Bandwidth | 2.0Gbps |
